CAPACITY 200-425 TON/STROKE 150-300MM/WORKING PRESSURE 650 BAR
Features / Application- Pre-stressing & post tensioning of strands in concrete structure
- Relief valve in return line for safety
- Suitable calibrated power pack units & accessories available

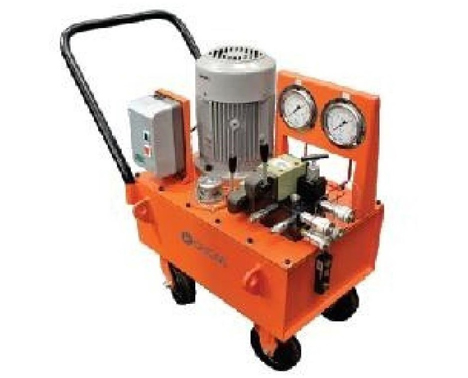

| Power Pack Model | Pump Stage | Motor (HP/Phase) |
Filling Capacity (liters) |
Pump flow (I/min) |
Max Working Pressure (bar) |
Weight (Approx.)(kg.) |
Operation |
|---|---|---|---|---|---|---|---|
| ATPP 5013 | Single | 5 / Three | 40 | 2.6 | 700 | 142 | Manual(Rotary DCV) |
| ATPP 7513 | Single | 7.5 / Three | 40 | 3.7 | 700 | 195 | Manual(Rotary DCV) |
- 1. Specification are subject to change due to continual improvement
- 2. Capacity & stroke specified are maximum safe limits. As safe practice,use at 80% of rating
- 3. Higher capacity & customized solutions on request.
