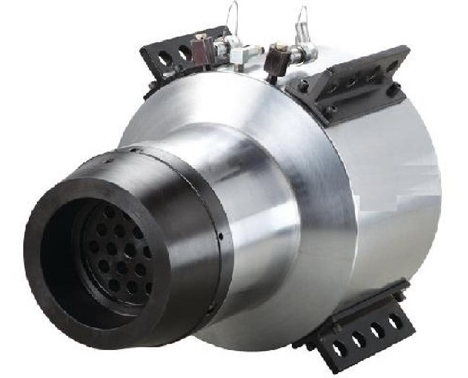

CAPACITY 200-425 TON/STROKE 150-300MM/WORKING PRESSURE 650 BAR
Features / Application- Mechanical stroke limiter (by-pass type) & pressure relief valve on return side for safety
- Relief valve in return line for safety
- Pre-stressing & post tensioning of strands in concrete structure
- Suitable calibrated power pack units & accessories available

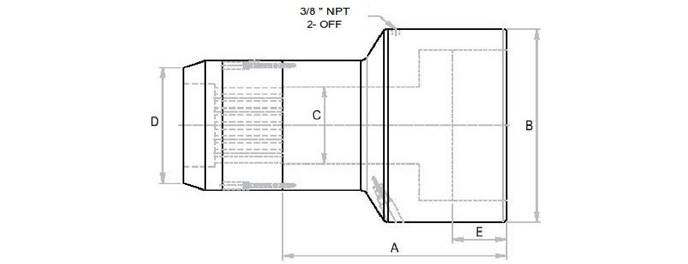

| Model | Capacity | Capacity | Stroke | Maximum No. of Strands | Effective Area | Oil Cap. | A Closed height |
B Cylinder OD |
C C'hole dia. |
D Ram dia. |
E Depth |
Wt. (Approx.) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (ton) | (kN) | (mm) | 0.5" Size | 0.6" Size | (cm2) | (cc) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg.) | |
| AMSA 2030 | 200 | 2013 | 300 | 12 | 7 | 309.6 | 9290 | 785 | 315 | 120 | 240 | 327 | 265 |
| AMSA 3016 | 300 | 3001 | 160 | 12 | 7 | 500.3 | 8355 | 535 | 390 | 140 | - | 189 | 245 |
| AMSA 3530 | 350 | 3517 | 300 | 19 | 12 | 541.1 | 16234 | 830 | 430 | 165 | 290 | 330 | 450 |
| AMSA 42.515 | 425 | 4288 | 150 | 31 | 19 | 659.7 | 9900 | 515 | 475 | 190 | 315 | 177 | 39 |
- 1. Specification are subject to change due to continual improvement
- 2. Capacity & stroke specified are maximum safe limits. As safe practice,use at 80% of rating
- 3. Higher capacity & customized solutions on request.
